36.010053-0021 - Metro-S Ø120mm - COB (white printed glass) - without recessed housing Matt black finish RAL 9105

Fixture details

Mounting Ground - recessed
Light emission Indirect
Light distribution Symmetrical
Fitting cover Glass
Protection rate IP 67
Maximum load 1000 kg drive-across (excluding recessing housing)
<75° °
Housing Aluminium/Stainless Steel
Finish Matt black finish RAL 9105

Lamp details

Gross luminous flux 463
Luminaire power 5W
Cover glass Flat - white
Number 1
Lifetime LED module L80/B10 = 100000h
Color tolerance MacAdam 3
CRI 80

Electric details

Protection class I
Supply 230V
Control gear box Current driver

Protection

CIE Fluxcode 0 0 0 0 8

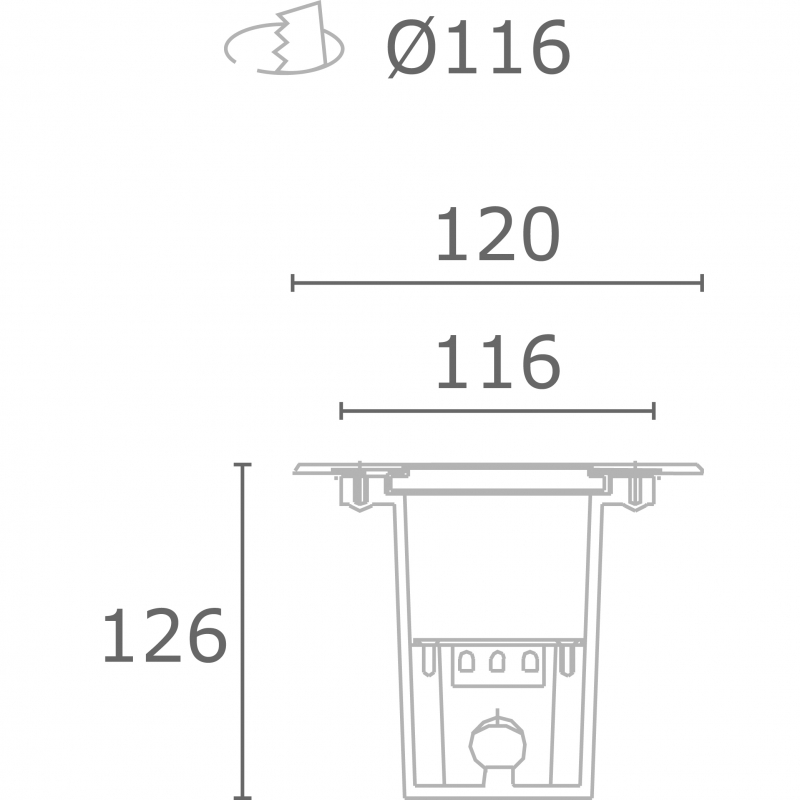

Dimensions

Downloads

30.60530-0021 - Glass Ø68 opal

30.60510-0000 - Gasket for glass Ø68

30.60646-0000 - Recessing housing for glass Ø68

30.60010-0000 - Suction cup for glass

30.60012-0000 - Wiring connection box IP65 4x PG16

30.60530-0041 - Glass Ø68 opal slipfree

30.60050-0000 - male connector and sealed cable connection

30.60051-0000 - cable plug with 1 cable entry and 1 female socket

IP65 socket for rigid cable Ø10-14mm/3x1,5-4mm²

30.60052-0000 - cable plug with 2 cable entries and 1 female socket

IP65 plug for rigid cable Ø10-14mm/3x1,5-4mm²

30.60063-0000 - cable plug with 1 male socket and 3 female sockets

for rigid cable Ø10-14mm/3x1,5-4mm²

30.60900-0000 - one-time cost electrolytic polishing

30.60901-0120 - Electrolytic polishing Metro Ø120

Inspiring images
