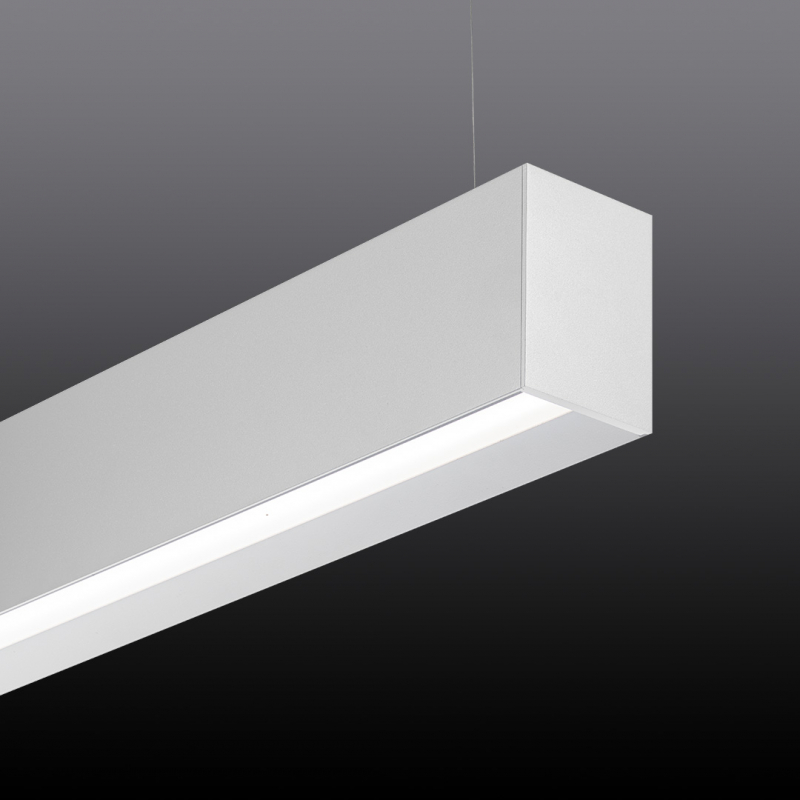

04.70300593-0001 - Hideline 65x90 Direct/Indirect - satin - HO 150mA - ANO - Anodized finish

Fixture details

Mounting	Pendant
Light emission	Direct-Indirect
Fitting cover	Satin diffusor
Protection rate	IP 20
Housing	Aluminium
Finish	Anodized finish

Lamp details

Lamptype	LED 3000K
Wattage	3,2W
Gross luminous flux	10795
Luminaire power	59,8W
Number	17
Lifetime LED module	L80/B10 > 102000h
Color tolerance	MacAdam 3
CRI	>80

Electric details

Protection class	I
Supply	230V
Control gear box	Current driver

Protection

UGR	>19

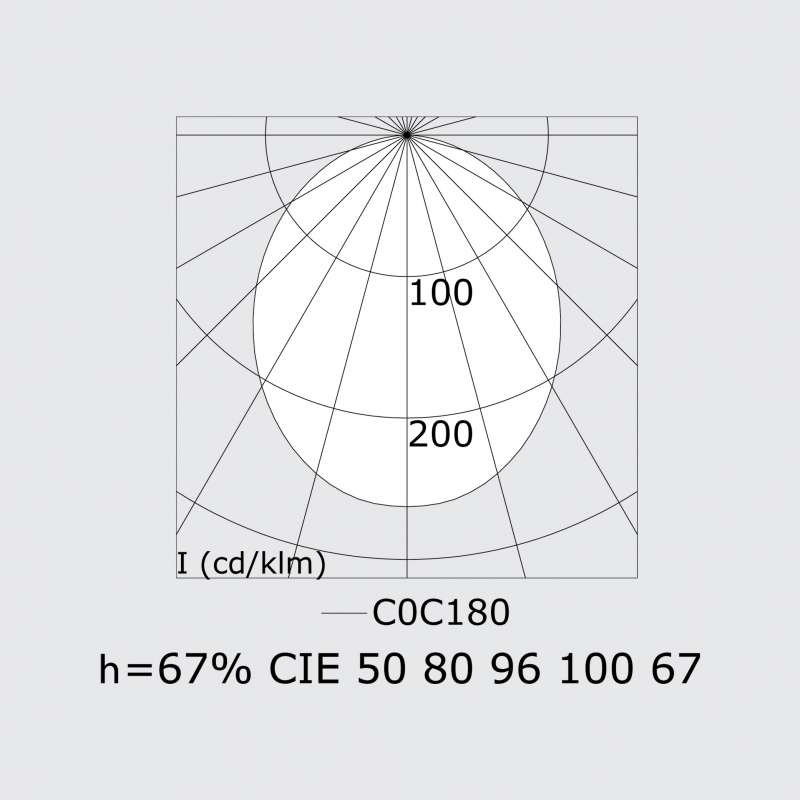

CIE Fluxcode	50 80 96 100 67

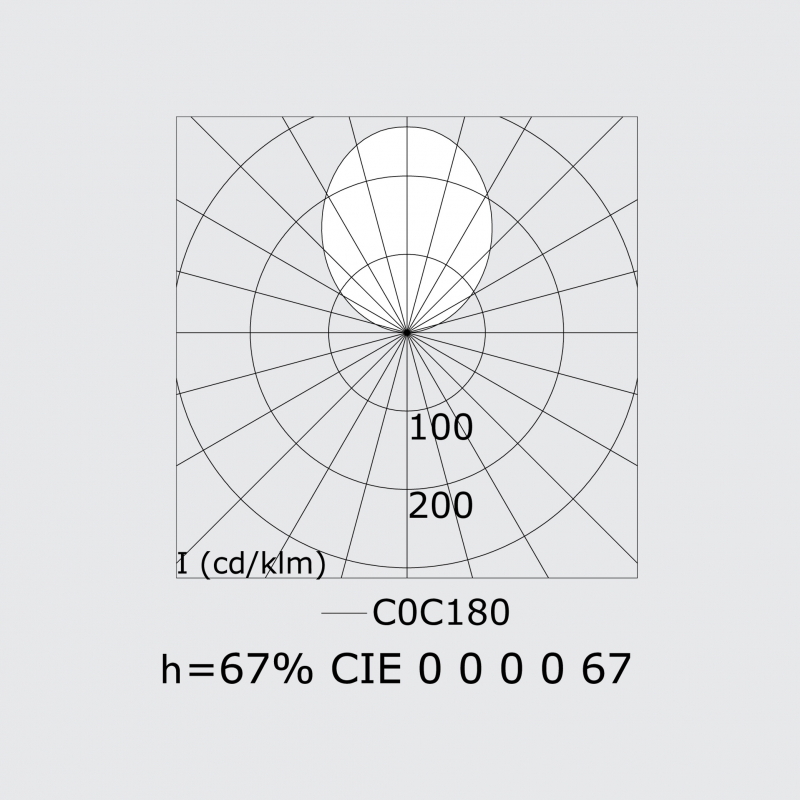

CIE Fluxcode Indirect	00 00 00 00 67

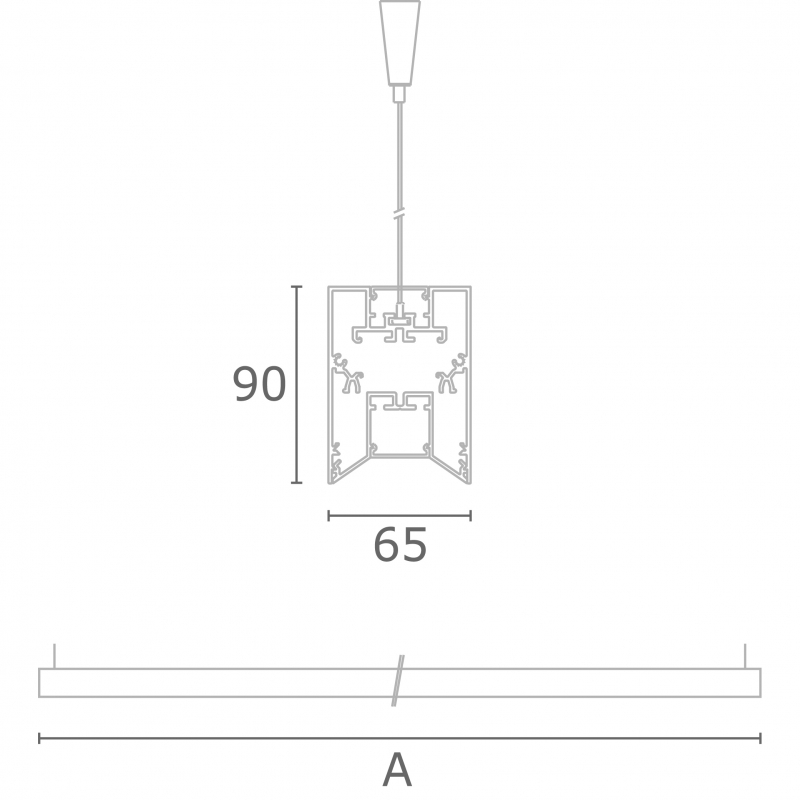

Dimensions

A	2530 mm
