05.18006623-9999 - Maze - I - Surface-mounted - satin - HO 325mA - RAL - RAL colour at your choice
Fixture details
| Mounting | Pendant |
| Light emission | Direct |
| Fitting cover | Satin diffusor |
| Protection rate | IP 20 |
| Housing | Aluminium |
| Finish | RAL colour at your choice |
Lamp details
| Lamptype | LED 3000K |
| Wattage | 7,1W |
| Gross luminous flux | 2690 |
| Luminaire power | 15,7W |
| Number | 2 |
| Lifetime LED module | L80/B10 > 72000h |
| Color tolerance | MacAdam 3 |
| CRI | 80 |
Electric details
| Protection class | I |
| Supply | 230V |
| Control gear box | Power supply - 2 supply points |
Protection
| CIE Fluxcode | 49 80 96 100 66 |

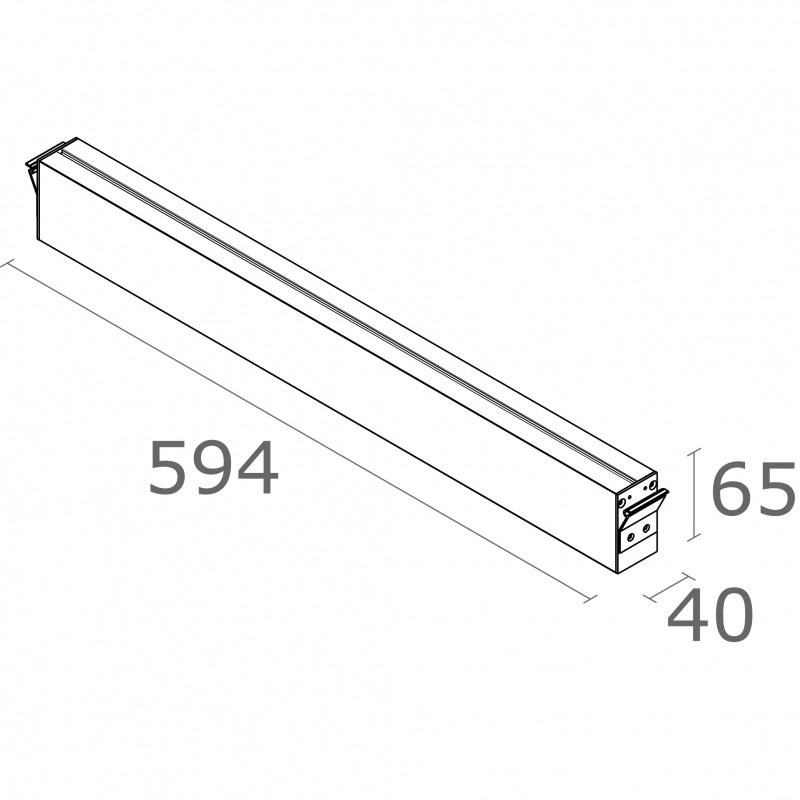

Dimensions
Downloads
Accessories
12.00920-0101 - Lampshade - I - Height 200mm - white/white
12.00920-0102 - Lampshade - I - Height 200mm - white/black
12.00920-0201 - Lampshade - I - Height 200mm - black/white
12.00920-0301 - Lampshade - I - Height 200mm - gold/white
12.00920-0302 - Lampshade - I - Height 200mm - gold/black
12.00920-0398 - Lampshade - I - Height 200mm - gold/brown leather
12.00940-0101 - Lampshade - I - Height 400mm - white/white
12.00940-0102 - Lampshade - I - Height 400mm - white/black
12.00940-0201 - Lampshade - I - Height 400mm - black/white
12.00940-0301 - Lampshade - I - Height 400mm - gold/white
12.00940-0302 - Lampshade - I - Height 400mm - gold/black
12.00940-0398 - Lampshade - I - Height 400mm - gold/brown leather
12.00960-0101 - Lampshade - I - Height 600mm - white/white
12.00960-0102 - Lampshade - I - Height 600mm - white/black
12.00960-0201 - Lampshade - I - Height 600mm - black/white
12.00960-0301 - Lampshade - I - Height 600mm - gold/white
12.00960-0302 - Lampshade - I - Height 600mm - gold/black
12.00960-0398 - Lampshade - I - Height 600mm - gold/brown leather
12.03912-0000 - Grid B 1050x1650mm
12.03931-0000 - Grid G 1650x3450mm
12.03932-0000 - Grid H 1650x3450mm
12.03941-0000 - Grid I 1650x4650mm
12.03961-0000 - Grid J 3450x3450mm
12.03981-0000 - Grid K 3450x4650mm
