07.36012013-9003 - Sferio Direct - MPO - LO - RAL 9003 - RAL 9003 Signal white
Fixture details
| Mounting |
Ceiling recessed |
| Light emission |
Direct |
| Fitting cover |
Micro prismatic diffuser |
| Protection rate |
IP 20 |
| Housing |
Aluminium |
| Finish |
RAL 9003 Signal white |
Lamp details
| Lamptype |
LED 3000K |
| Wattage |
8W |
| Luminaire power |
8W |
| Luminaire luminous flux |
823 |
| Number |
1 |
| Lifetime LED module |
L80/B10 = 50000h |
| Color tolerance |
MacAdam 3 |
| CRI |
>80 |
Electric details
| Protection class |
I |
| Supply |
230V |
| Control gear box |
Current driver 1-10V |
Protection
| UGR |
<19 |
| CIE Fluxcode |
60 87 97 100 100 |

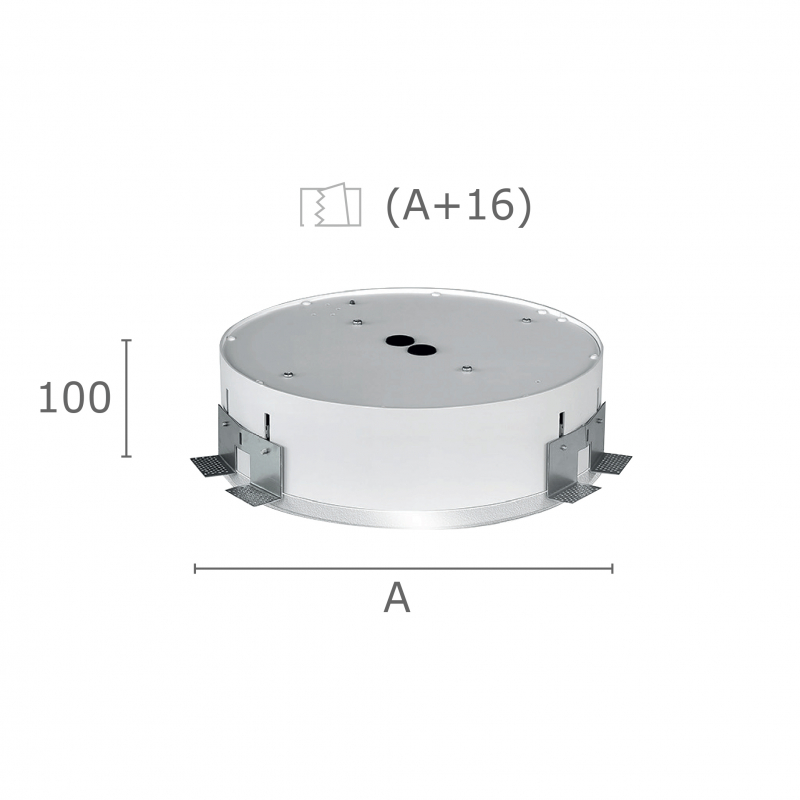

Dimensions
Downloads
Accessories
25.35901-0000 - Installation template Sferio 5.1 Ø300mm
25.35902-0000 - Installation template Sferio 5.1 Ø400mm
25.35903-0000 - Installation template Sferio 5.1 Ø500mm
25.35904-0000 - Installation template Sferio 5.1 Ø650mm

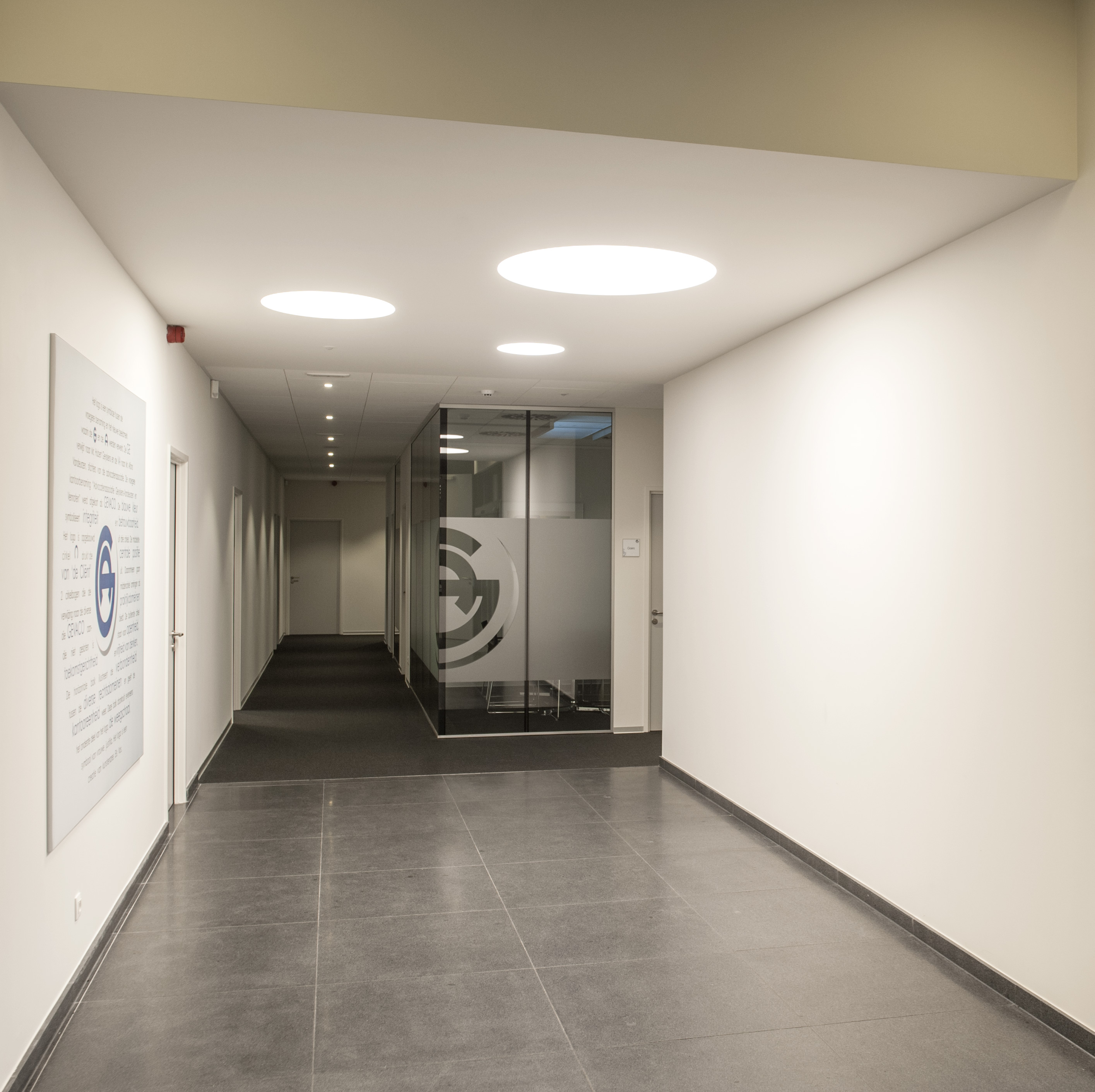

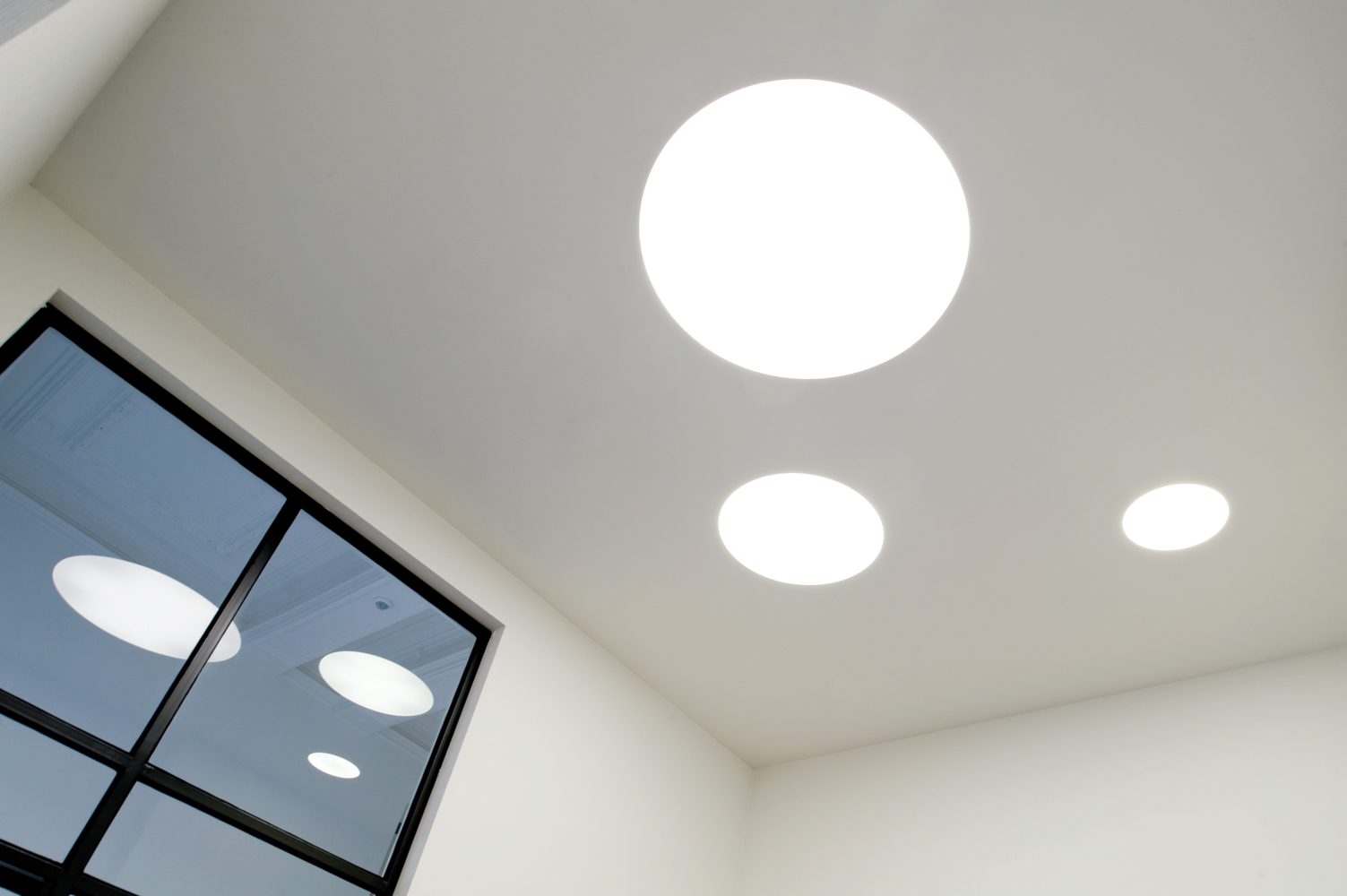

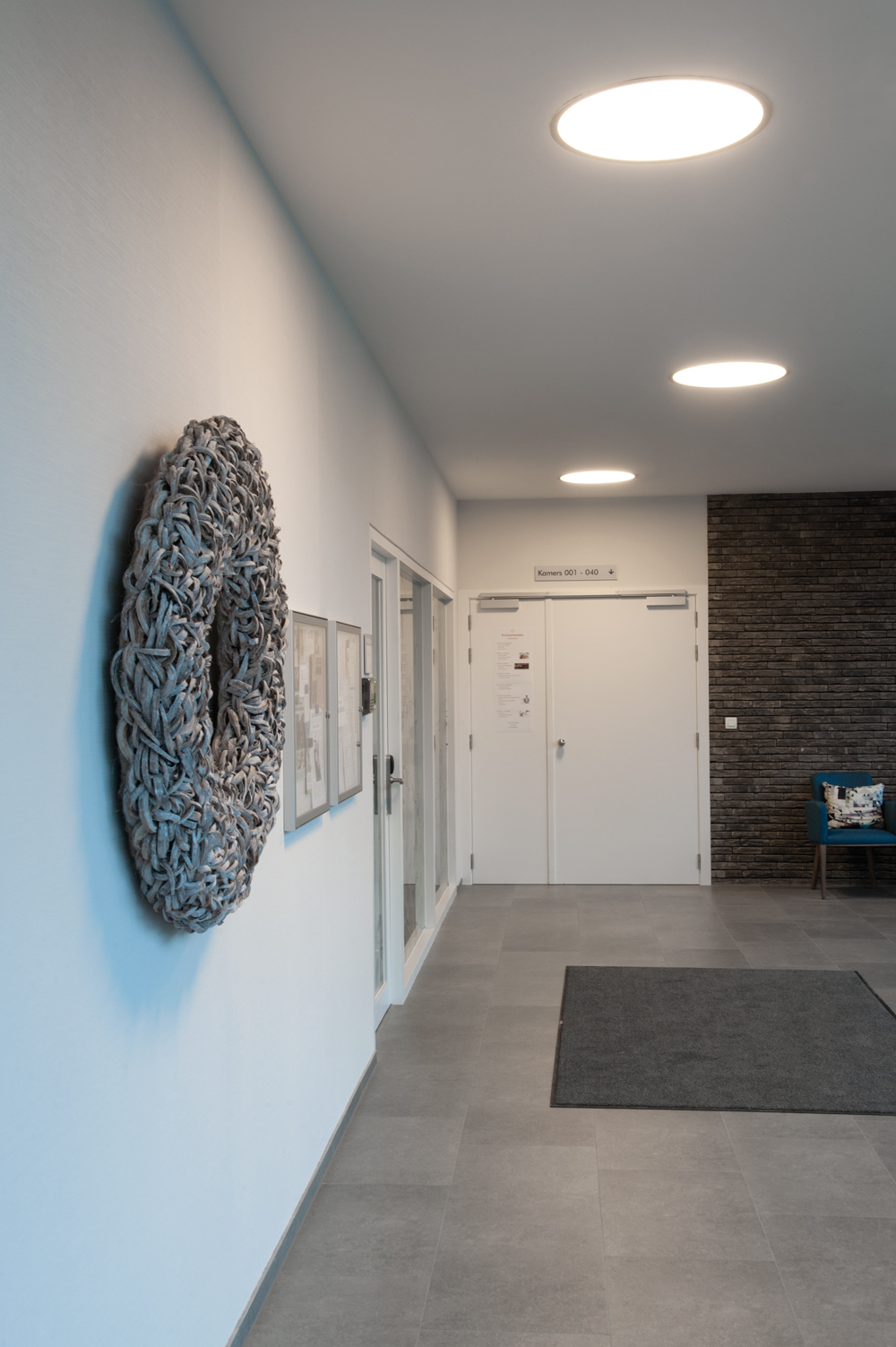

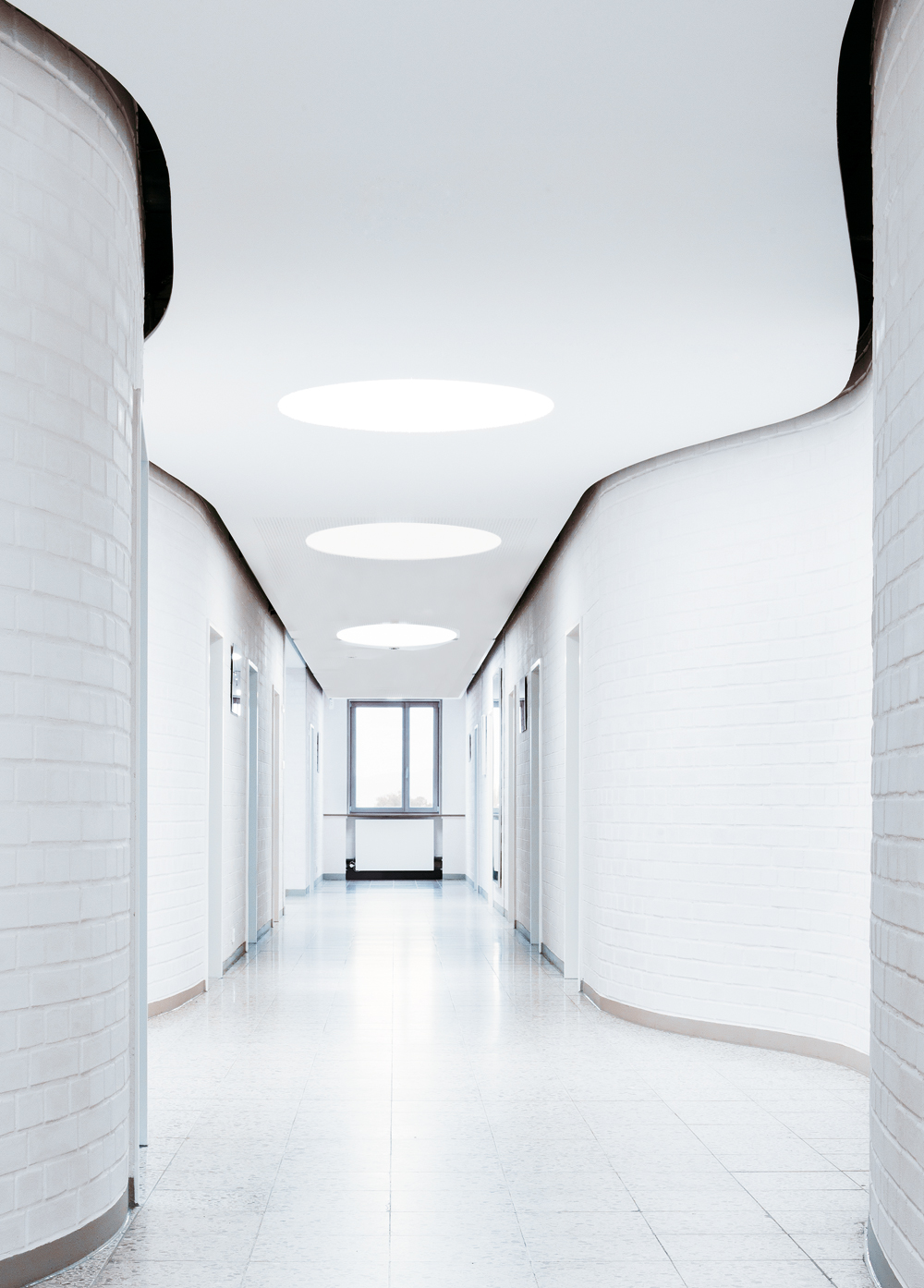

Inspiring images
