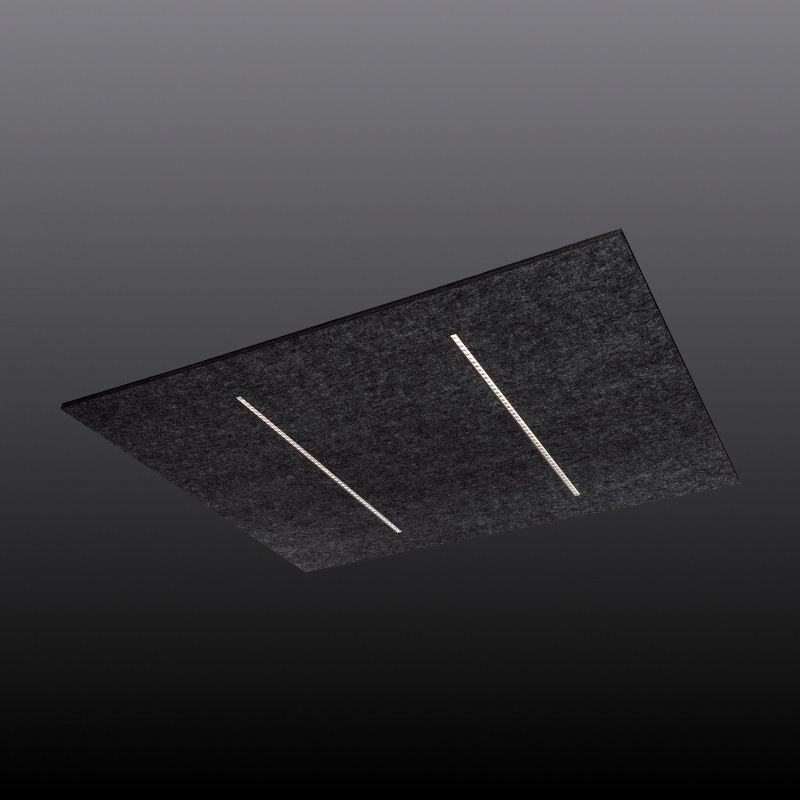

31.13124144-9905 - Plato 1 Direct - VDT - LO 400mA - Graphite black - 9905 = Graphite black panel and profile
Fixture details
| Mounting | Pendant |
| Light emission | Direct |
| Fitting cover | VDT louvre |
| Protection rate | IP 20 |
| Housing | Aluminium/PET |
| Finish | 9905 = Graphite black panel and profile |
Lamp details
| Lamptype | LED 4000K |
| Wattage | 4,4W |
| Gross luminous flux | 6920 |
| Luminaire power | 39,2W |
| Number | 8 |
| Lifetime LED module | L80/B10 > 72000h |
| Color tolerance | MacAdam 3 |
| CRI | 80 |
Electric details
| Protection class | I |
| Supply | 230V |
| Control gear box | Current driver DALI/TD |
Protection
| UGR | <19 |
| CIE Fluxcode | 90 99 100 100 68 |

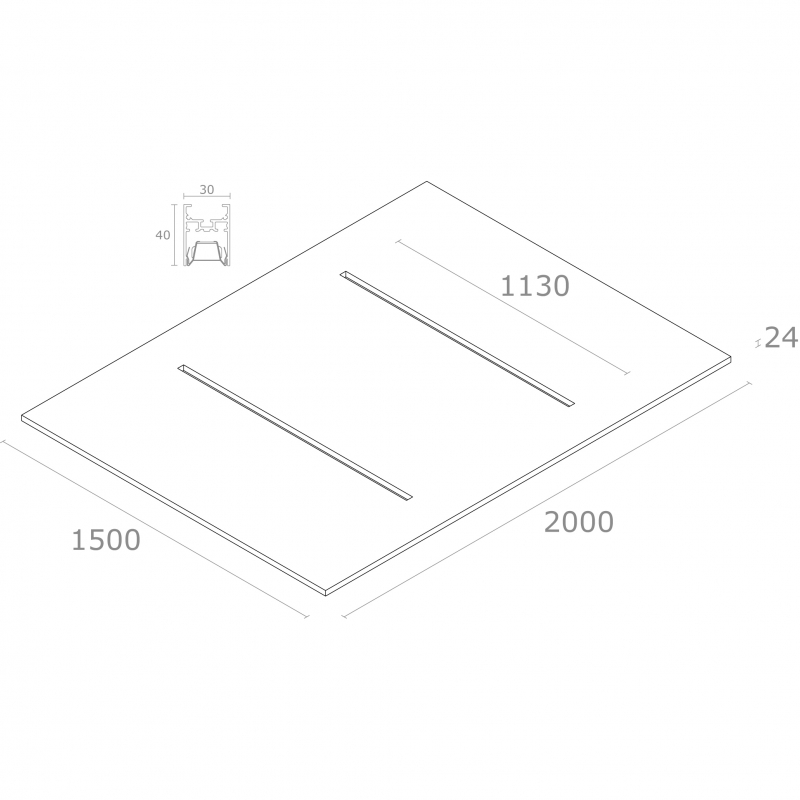

Dimensions
