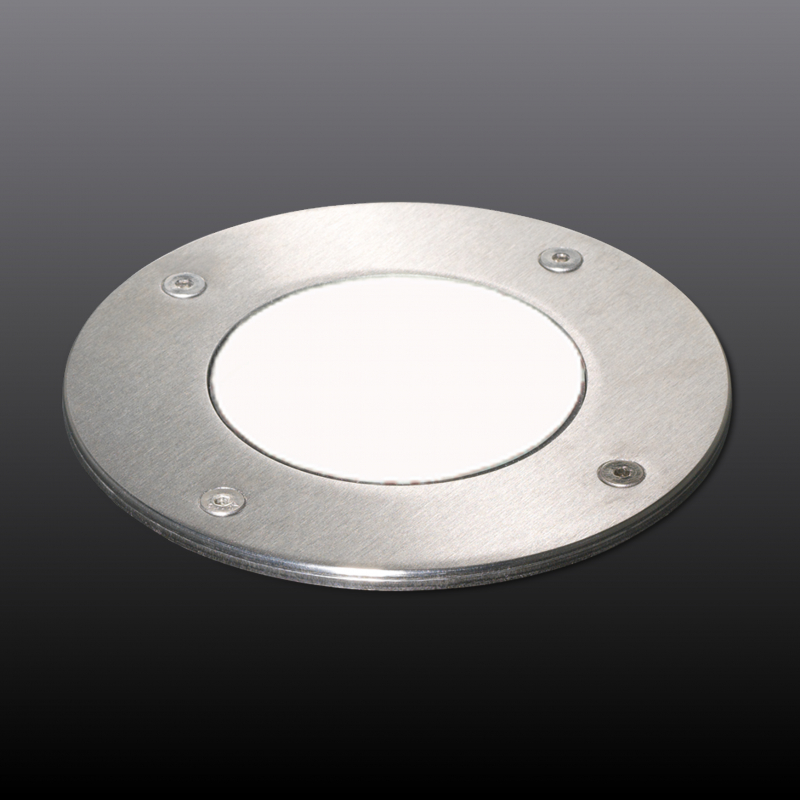

36.010052-0021 - Metro-S Ø120mm - COB (white printed glass) - without recessed housing Matt black finish RAL 9105
Fixture details
| Mounting | Ground - recessed |
| Light emission | Indirect |
| Light distribution | Symmetrical |
| Fitting cover | Glass |
| Protection rate | IP 67 |
| Maximum load | 1000 kg drive-across (excluding recessing housing) |
| T° | <75° ° |
| Housing | Aluminium/Stainless Steel |
| Finish | Matt black finish RAL 9105 |
Lamp details
| Gross luminous flux | 443 |
| Luminaire power | 5W |
| Cover glass | Flat - white |
| Number | 1 |
| Lifetime LED module | L80/B10 = 100000h |
| Color tolerance | MacAdam 3 |
| CRI | 80 |
Electric details
| Protection class | I |
| Supply | 230V |
| Control gear box | Current driver |
Protection
| CIE Fluxcode | 0 0 0 0 8 |

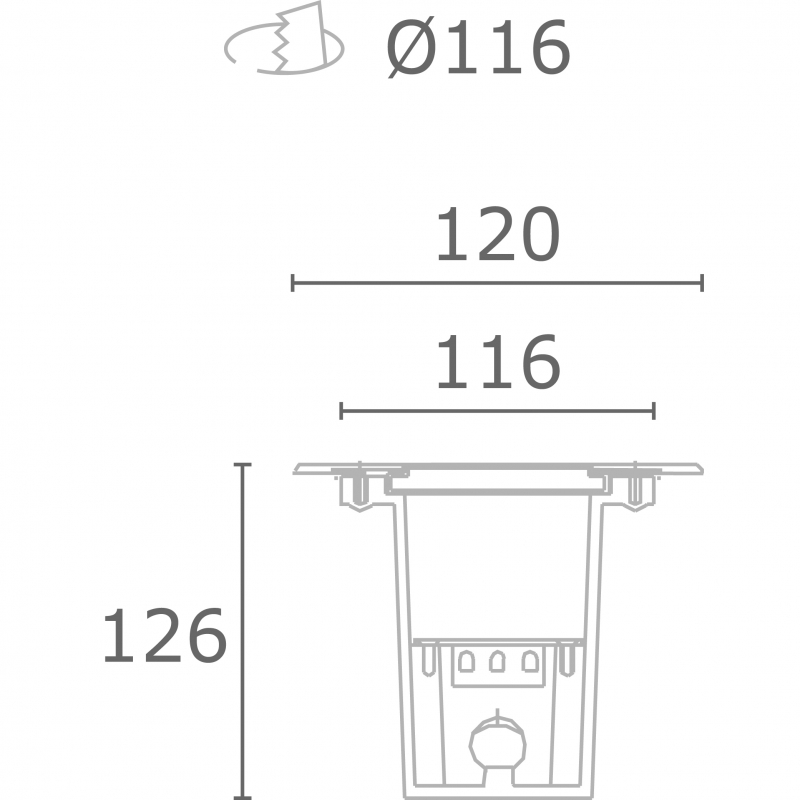

Dimensions
Downloads
Accessories
30.60530-0021 - Glass Ø68 opal
30.60510-0000 - Gasket for glass Ø68
30.60646-0000 - Recessing housing for glass Ø68
30.60010-0000 - Suction cup for glass
30.60012-0000 - Wiring connection box IP65 4x PG16
30.60530-0041 - Glass Ø68 opal slipfree
30.60050-0000 - male connector and sealed cable connection
30.60051-0000 - cable plug with 1 cable entry and 1 female socket
IP65 socket for rigid cable Ø10-14mm/3x1,5-4mm²
30.60052-0000 - cable plug with 2 cable entries and 1 female socket
IP65 plug for rigid cable Ø10-14mm/3x1,5-4mm²
30.60063-0000 - cable plug with 1 male socket and 3 female sockets
for rigid cable Ø10-14mm/3x1,5-4mm²
30.60900-0000 - one-time cost electrolytic polishing
30.60901-0120 - Electrolytic polishing Metro Ø120
